Multi-Layered Maps in Oracle Analytics


Visualizing multiple layers of business data on a map and spatially interacting with them, have been a forte of specialized GIS tools, however it has been a challenge for multiple market leading BI and Data Visualization vendors.
Recent release of Oracle Analytics is pushing its map data visualization capabilities to new heights to address such spatial analysis needs. In this blog we will do a brief tour of the Multi-layered mapping capabilities included in recent release Oracle Analytics Cloud & Data Visualization.

Multi-layered maps architecture allows users to visualize data using multiple map layers in a single map visualization. It does that by overlaying location data on layers represented by different types of geometries (points, lines, and polygons) or layers with specialized rendering of those geometries (heatmap or clusters).

One example need for multi-layered maps is if operations manager of a Railway company wants to analyze traffic by geography which can be City, Zip code, County, State or by lines. He/she could use multi layered maps to visualize traffic by City using Point geometry map layer; by Zip code, county, State using polygon geometry map layer; by line using line geometry map layer. Here is a quick preview of how such a visualization would look like in OAC:


This visualization shows the passenger traffic data (fictitious) of Washington DC metro by Stations (Point geometry), Line (Line geometry) and by Zip code (Polygon geometry).

Following video walks through this multi-map layers:


Adding Data Layers on a Map

To render a map visualization you can simply select a geography column (and optionally its associated metrics) and choose Map visualization. Map viz in DV looks up the most suitable map layer and displays that data on map. For example, select zip name and passenger count and display as Map.
To add more layers of business data to Map visualization, click on Menu option above Category (Geography) grammar field and select Add Layer. This will add a new map layer to the Map visualization. A new layer can also be added from the map properties pane.



This menu also lets user manage the map layers i.e., to Hide, Delete or Order a layer. We will discuss ordering map layers later in this blog. We may add and manage any number of layers using these options.

Once a layer is added, drag and drop the geography column to be visualized in Category (Geography) field. Map layer corresponding to that geography field will be auto selected and it gets visualized on the map.

Once all the required map layers are added to the map visualization, users can view the list of map layers added to the visualization by clicking on the drop down list next to Menu option. We have 3 map layers for DC Metro in the example shown above. 1) DC Metro Lines (Line geometries) 2) DC Metro Stations (Point geometries) 3) DC Zip Code (Polygon geometries).



In latest OAC/DV following layer types are supported in map visualization –
1) Point Geometry layers
2) Line Geometry layers
3) Polygon Geometry layers
4) Heat maps

In this blog we will look at features related to Point, Line and Polygon geometry layers using the DC Metro example above. We will discuss about Heat maps in detail in a separate blog.



Layer Properties

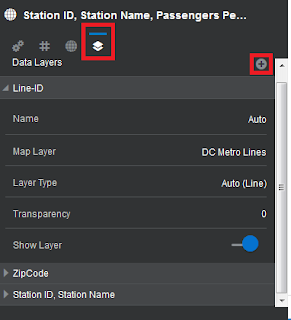

Data Layers tab under map properties lets users manage the properties of all map layers like Name of the layer, Map Layer, Layer type, Transparency of a Layer and whether to show the layer or not. Layers icon highlighted in red sitting right next to Globe icon is Properties tab of multi layered maps. Map layers added to this map visualization are listed here. Clicking + icon will add more Map layers.



Each map layer has a set of properties:

      1) Name: By default OAC assigns a name to the layer with column names used in that layer. Users can change it to any custom name that they want.
      2) Map Layer: Map layer is automatically chosen based on the match between contents of the column present in Category (Geography) field and Key columns of the custom map layer. Users can also change the Map layer and manually assign other layers that are a better match. Here is quick snapshot that shows how to change a map layer:


      3) Layer type: Depending on the type of geometries defined in a map layer, users can change the type of layer. This will change the way a layer is rendered on the map. For example: Map layers with Points and Polygon geometries can either be displayed as points and polygons respectively or as points. Map layers with Point geometries can be displayed as either Point or Heatmap.

      4) Transparency: Transparency lets users choose the degree of Transparency of this layer so that other co-existing layers are visible through this layer.


      5) Show Layer: Toggling Show Layer to Off/On will show/hide the layer from the map visualization. Another way to Toggle layer display is by clicking on the Map Layer icon in the legend. Here is a snapshot that shows this behavior:


      6) Visualization Grammar by Layer type:  Fields available in the visualization grammar differs by the map layer type.
a.   Category (Geography): This field represents the geographic columns which will be matched against the key columns of custom map layer. This field can take multiple columns and all these columns do not have to match with key columns in the layer. Values of all these columns will be shown in the tooltip that is displayed when we hover over that geometry
b.   Color: This field takes either metrics or attribute columns and assigns either gradient or distinct colors depending on the type of column.
c.   Tooltip: Tooltip field takes metric columns and displays these metric values in the tooltip that is displayed when those data points are hovered over in the map visualization
d.   Filters: if you want to apply filters to your dataset
e.   Size: This field can take only metric columns and in case of point geometry, adjusts the size of the bubble in proportion to the metric value.


      7) Legends: Each map layer contains its own legend and all legends are displayed on the map visualization with appropriate icons to indicate the map layer to which that particular legend is associated with.



Users can display these legends on the Top, Bottom, Left, Right, None or Auto. Selecting Layer icon allows to toggle display of its corresponding layers

Layer Reordering and Display Controls


Layer Ordering: 'Order Layer' option present in the Menu option lets user reorder a layer. Here is a quick snapshot which shows the allowed options with Order Layer:



Users can either bring the layer to Front (top) or move it just above the layer which is on top of the current layer (Bring Forward). Similarly users can send the map layer beneath/behind the layer above which the current map layer is (Send Backward) or send it all the way to the bottom (Send to Back).
Users can also visually reorder map layers using simple hold and slide option available in Properties pane. This will reorder the map layers in the map visualization.



Layer Display Controls: In addition to the Toggle hide layer options described above, hide layer option in Menu lets user Hide a map layer. Functionally this is same as Toggling Hide button in Manage Layer properties Tab and in the Legend. Users can also delete a map layer using Delete Layer option. This will permanently remove a map layer.
